Ultrasonic Thickness Meters

Ultrasonic Wall Thickness Gauges measure the wall thickness of materials such as steel, plastic, and more using ultrasonic technology. Ultrasonic Thickness Gauges are ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side. Multiple echo Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.

What is Ultrasonic Thickness Measurement?

Ultrasonic thickness measurement techniques are used to measure a wide range of substrates and applications for loss of material thickness due to corrosion or erosion. Ultrasonic Thickness Gauges are designed for measuring the thickness of metallic (cast iron, steel, and aluminum) and non-metallic (ceramics, plastics, and glass) substrates and any other ultrasonic wave-conductor provided it has relatively parallel top and bottom surfaces.

An ultrasonic thickness gauge facilitates rapid inspection of the thickness of large metallic structures at small measurement intervals, providing a high-detail thickness map of a scanned surface. When access is only available from one side of the substrate, ultrasonic wall thickness measurement is the most efficient way to monitor the effects of erosion or corrosion and is instrumental to both quality assurance and quality control.

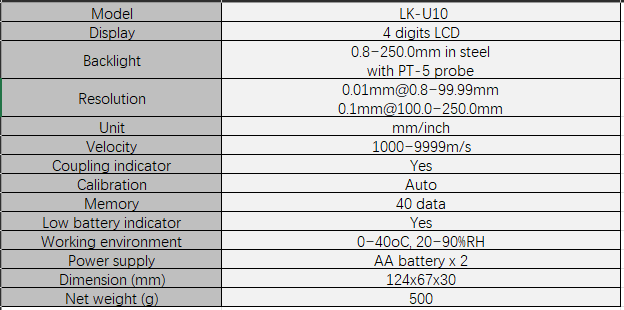

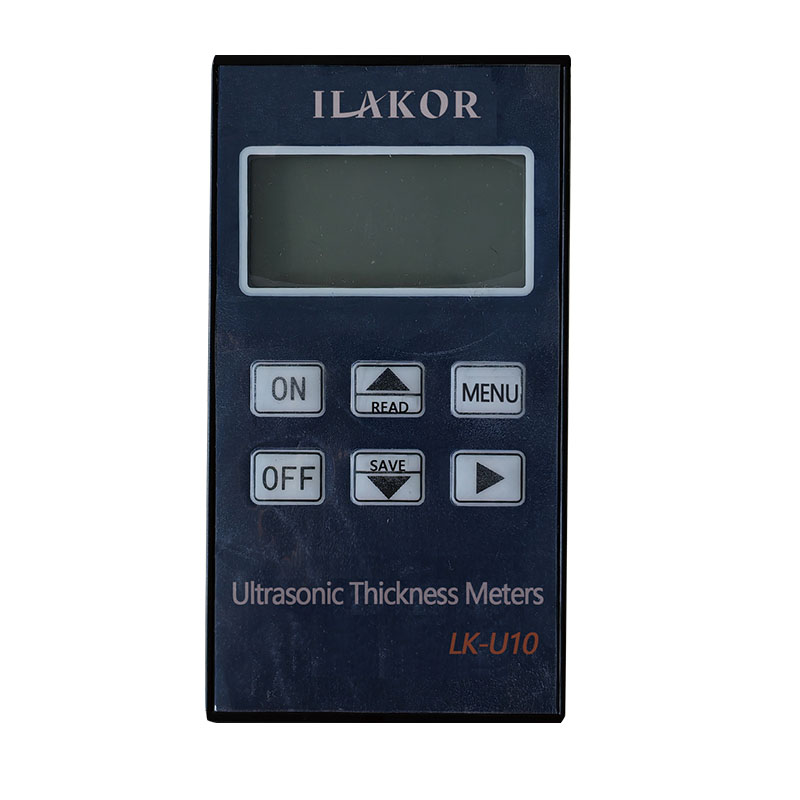

 LK-U10 Ultrasonic Thickness Gauge are the miniaturized ultrasonicthickness gauges that can measure wall thickness andvelocity.

Our intelligent gauges are designed to measurethe thickness of metallic and nonmetallic materials suchas steel, aluminum, brass, silver and etc. Theyare quite versatile model which can be easilyequipped with the low & high frequencyprobes as well as a high temperature probe.

Standard package

probe holder

Built-in calibration block

Operation manual

Carrying case

Optional probes

XT-5 probe

GT-5 probe

CT-2.5 probe

PT-5 probe with probe holder

Coupling paste for high tem-

perature
