Coating thickness, paint thickness is an important variable that plays a role in product quality, process control, and cost control. Measurement of film thickness can be accomplished by selecting the best mil gage for the particular application. Coating thickness, paint thickness is an important variable that plays a role in product quality, process control, and cost control. Measurement of film thickness can be accomplished by selecting the best mil gage for the particular application. Why Dry Film Thickness Measurement is Important

Dry film thickness or coating thickness is arguably the single most important measurement made during the application and inspection of protective coatings. Coatings are designed to perform their intended function when applied within the Dry Film Thickness  range as specified by the manufacturer. Correct paint thickness ensures optimum product performance. Even the most basic specification will require Dry Film Thickness  to be measured.

The Measure of Quality

Regular film thickness measurement helps control material costs, manage application efficiency, maintain finish quality, and ensure compliance with contract specifications. Paint manufacturers recommend target ranges to achieve optimum performance characteristics and clients expect these parameters to be met.

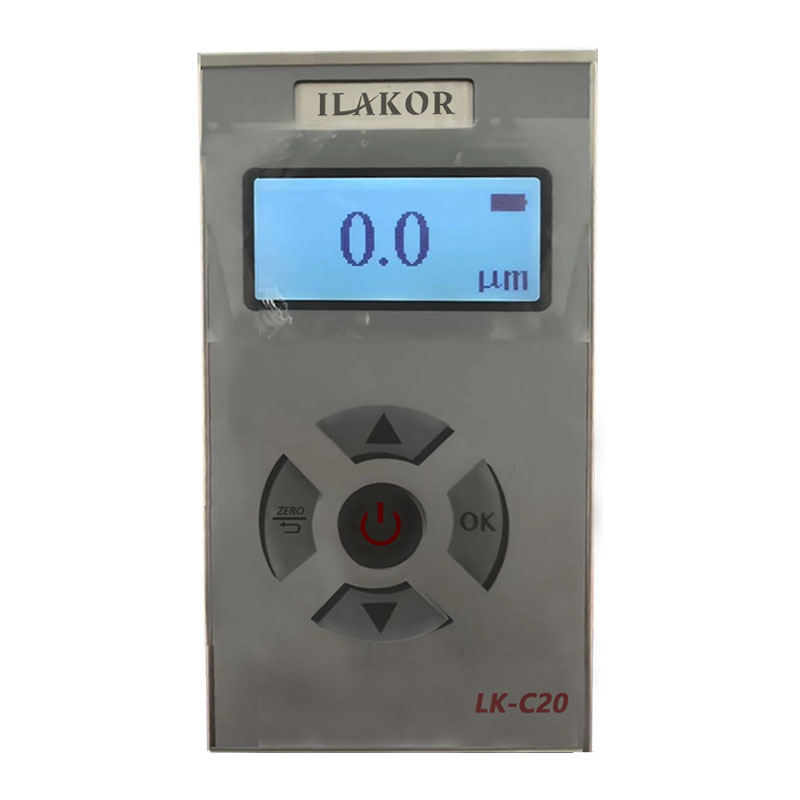

Features

1.1. Adopt high-speed MCU and advanced algorithm to ensure the accuracy and efficiency of measurement. The instrument supports fast measurement and continuous measurement, and the measurement speed can reach 0.3s/time.

1.2. Use LCD display to ensure good visual effect.

1.3. The wear-resistant metal probe can ensure stable data when measuring on hard or rough surfaces, and the probe wears more than 500,000 times.

1.4. Automatic shutdown mode to realize power saving function.

1.5. Reasonable structure design makes the machine comfortable to operate, small in size, light in weight and easy to carry.

1.6. Wide measurement range, high precision and good stability, which can meet the measurement of ultra-thin coatings.

1.7. Widely used in manufacturing, such as metal manufacturing, chemical, commodity inspection and other measurement fields area.

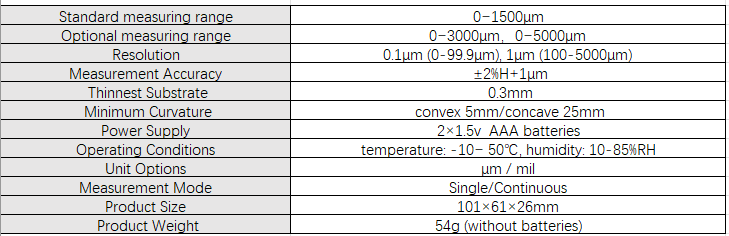

Technical parameters

Package list:

1.  Main machine × 1

2.  Iron substrate  × 1

3.  Aluminum substrate × 1

4.  AAA battery × 2 ( Not included if by air )

5.  Standard films × 5 (50 100 250 500 1000μm)

6.  Manual × 1

7.  Warranty Card × 1

8.  Packing box × 1

9. Note：0-3000μm and above range is also equipped with 2000μm calibration films
